KEYILE科译勒 K-RG80 80GHz Hygienic Tri-clamp Radar Level Transmitter

No.K-RG80G4

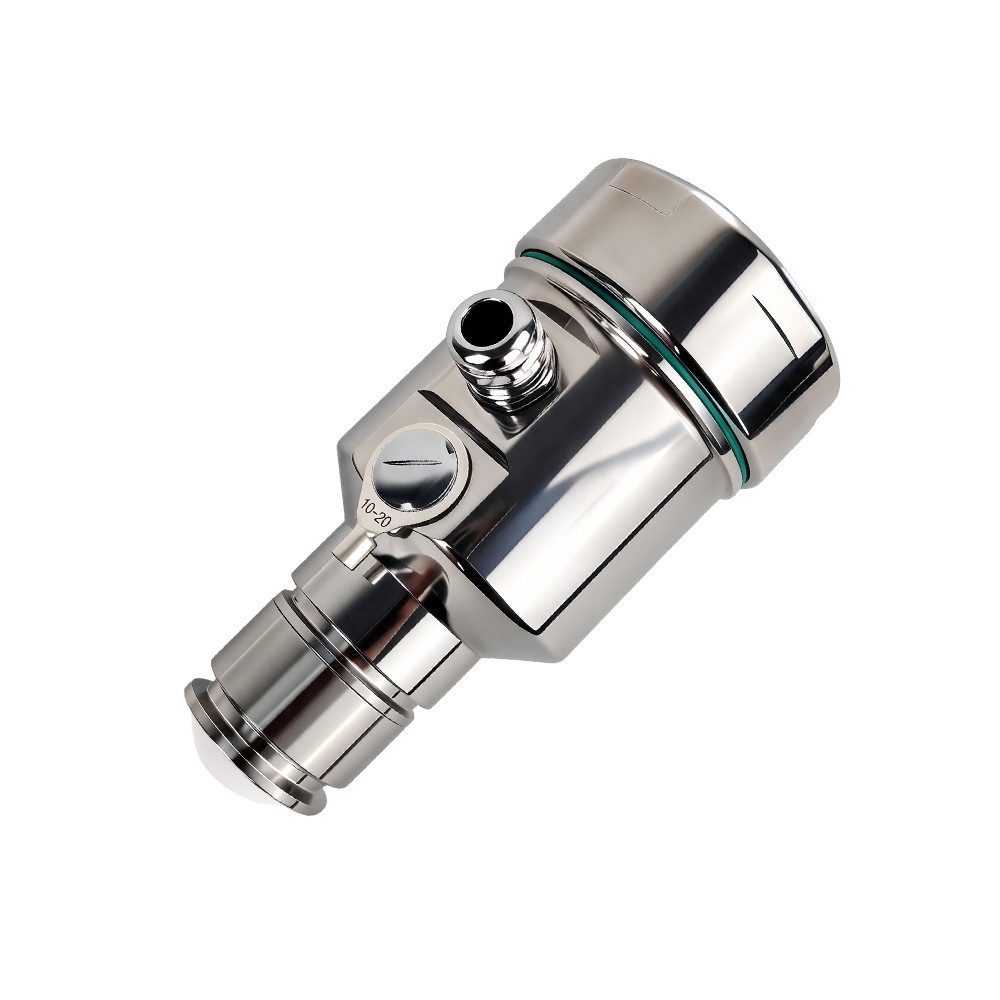

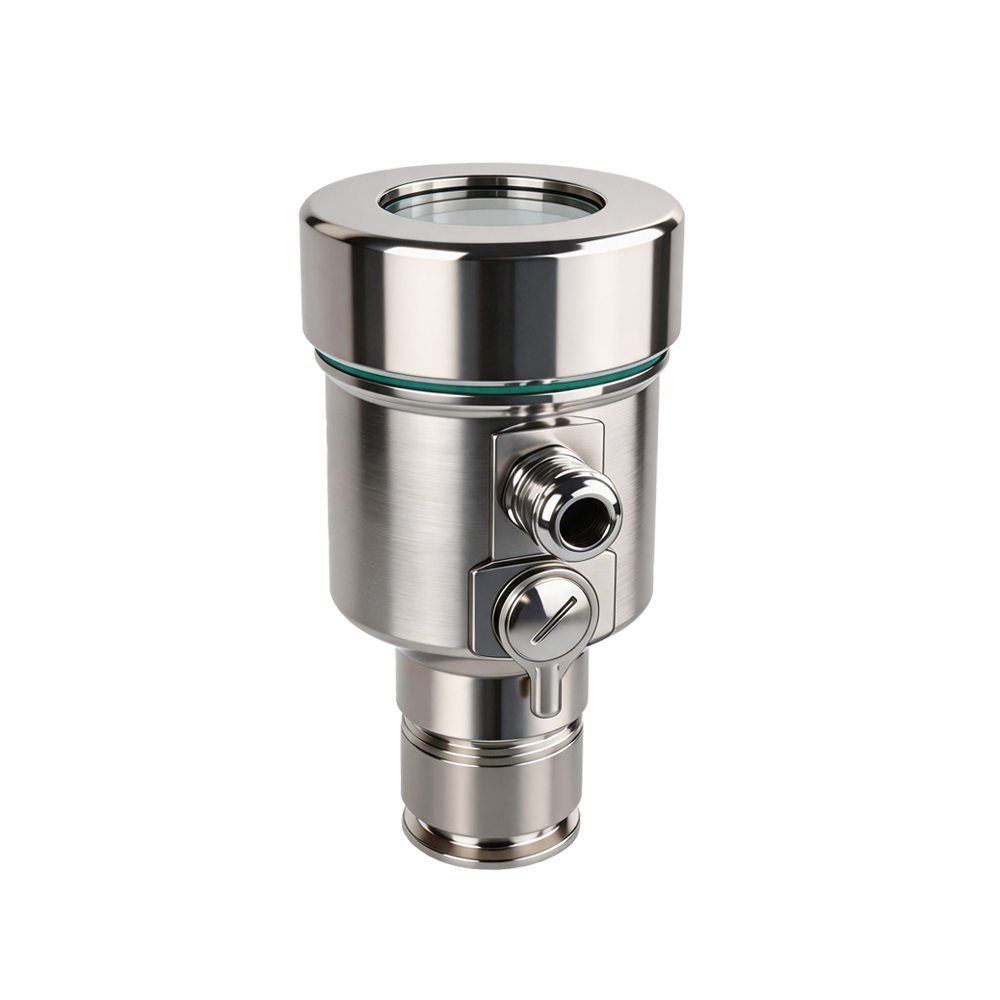

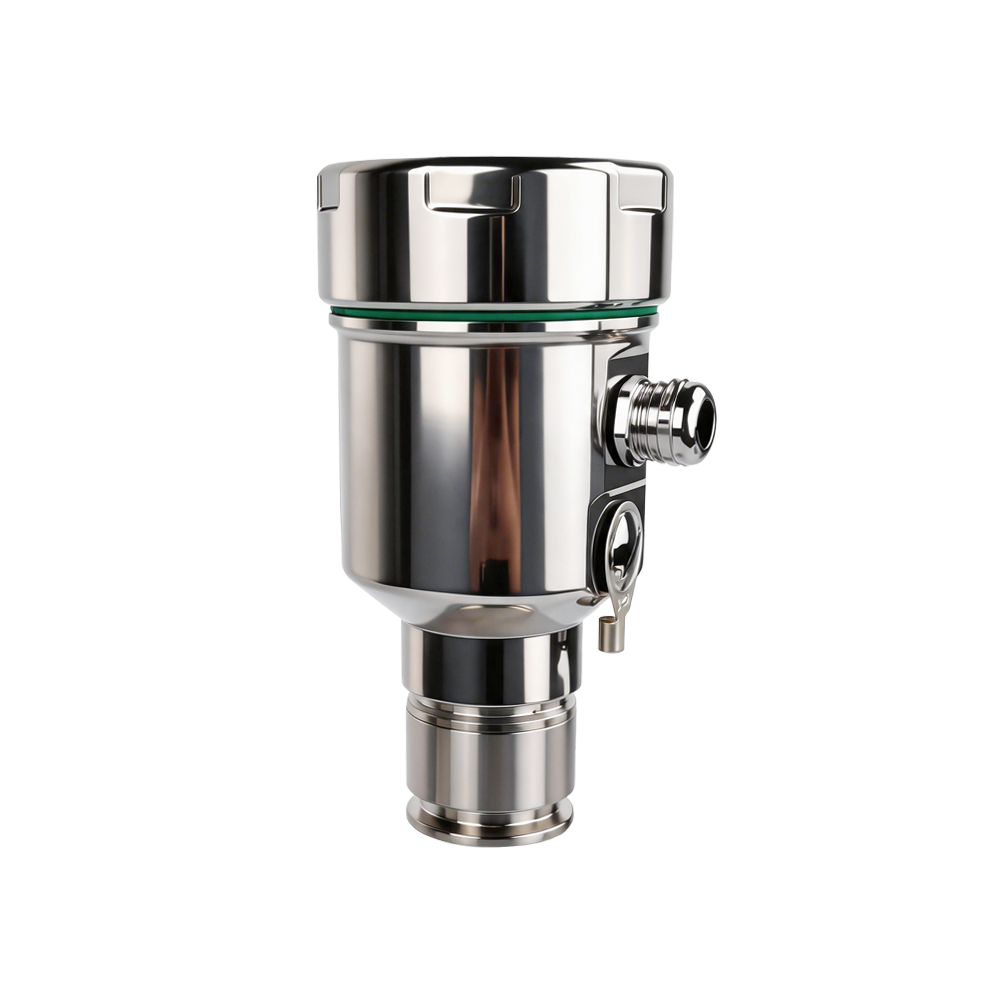

This 80GHz sanitary Tri-clamp radar level transmitter features seamless 316L stainless steel construction with no dead space, supporting CIP & SIP sterilization. Narrow beam angle effectively avoids interference from agitation, foam and condensation. With ±2mm high accuracy and 4-20mA/HART communication, it delivers non-contact contamination-free level measurement for pharmaceutical, food and beverage hygienic tanks.
K-RG80G4:
80GHz Hygienic Tri-clamp Radar Level Transmitter
80GHz Hygienic Tri-clamp Radar Level Transmitter
  • KEYILE科译勒 K-RG80 80GHz Hygienic Tri-clamp Radar Level Transmitter
  • KEYILE科译勒 K-RG80 80GHz Hygienic Tri-clamp Radar Level Transmitter
  • KEYILE科译勒 K-RG80 80GHz Hygienic Tri-clamp Radar Level Transmitter
  • KEYILE科译勒 K-RG80 80GHz Hygienic Tri-clamp Radar Level Transmitter
  • Description

  • Download

Measurement Principle


The radar level transmitter operates on the time-of-flight principle.The radar wave travels at the speed of light, and its transit time is converted into a level signal by electronic components. The probe emits high-frequency pulses that propagate along the cable probe. When the pulses encounter the material surface, they are reflected to the receiver inside the instrument, which then converts the distance signal into a level measurement.


Product Features



① Utilizing in-house developed CMOS millimeter-wave RF chips to achieve a more compact RF architecture, higher signal-to-noise ratio (SNR) and reduced blind zone.
② The 5GHz operating bandwidth enables the product to achieve higher measurement resolution and accuracy.
③ The narrow 3° antenna beam angle minimizes interference from the installation environment and enables easier setup.
④ The shorter wavelength provides better reflectivity on solid surfaces, eliminating the need for a special swivel flange for alignment.
⑤ Remote debugging and upgrade capabilities minimize downtime and maximize operational efficiency.
⑥ Bluetooth-enabled mobile debugging facilitates on-site maintenance operations.


Application Areas


This sanitary Tri-clamp quick-install radar level transmitter is applicable to various hygienic production scenarios, including GMP-compliant pharmaceutical sanitary tanks, food and beverage material storage tanks, bioengineering fermentation reactors, cosmetic batching tanks, as well as pure water and purified water system storage tanks.
Pharmaceutical Industry Food & Beverage Daily Chemical & Cosmetics Bioengineering

Technical Specification



Transmission Frequency

80GHz with 5GHz frequency modulation sweep bandwidth

Industrial Temperature / Humidity

40~85℃/≤95%RH

MeasuringRange

0.1~120m

HousingMaterial

Aluminum Alloy, Stainless Steel

Measurement Accuracy

±1mm

AntennaType

LensAntenna(OptionalLensAntennacover/Corrosion-ResistantAntenna/AntennaThermalpaste/QuartzIsolationflange)

Beam Angle

3° 、8°

Process Pressure

-0.1~2MPa

Applicable Dielectric Constant(εr) Range

≥2

Product Dimension

Ø100*270mm

Power Supply Range

18–28.0VDC, 2-wire (<1W)

Cable Entry

M20*1.5

Communication Methods

HART/MODBUS protocol

Recommended Cable

AWG18 or 0.75mm²

Signal Output Options

4~20mA (with HART protocol) or RS-485

Protection Rating

IP68

Fault Output

3.8mA, 4mA, 20mA, 22mA, Latch/Hold

Mounting Method

Threaded or Flange

On-site Operation /Programming

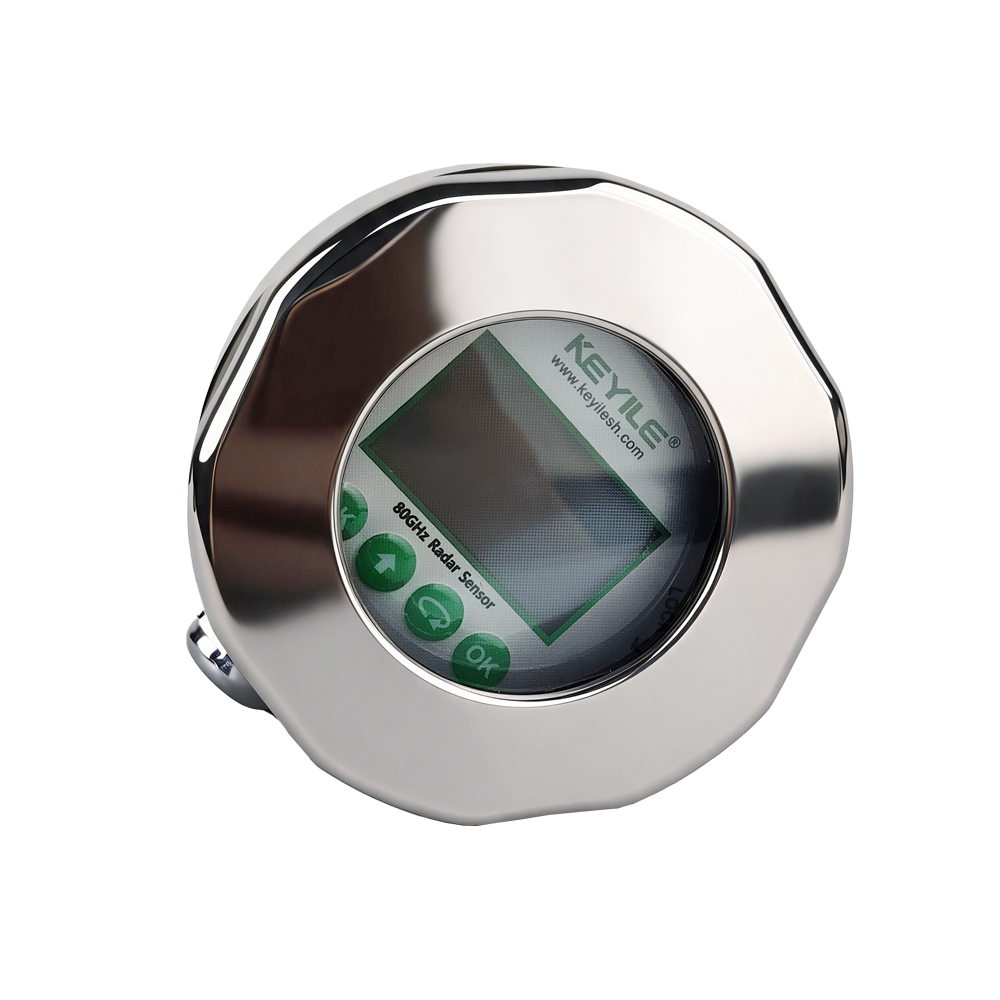

128×64 Dot-Matrix Display / 4 Physical Keys, Configurable via PC-Based Software

Net Weight/Gross Weight

2.480Kg/2.995Kg


Single-Chamber Housing 24VDC Product Wiring DIagram(Reference)



Four-Wire 24VDC Power Supply Product Interface Description

PIN1

24VDC (+) Positive Power Supply

PIN2

24VDC (-) Negative Power Supply

PIN3

HART(+),i.e.,4-20mA(+),4-20mA Positive Current Output

PIN4

HART(-),i.e,4-20mA(-),4-20mA Negative Current Output

PIN5

RS485(A),485 Communication Line

PIN6

RS485(B),485Communication Line


Product Installation



Key Installation Considerations:

(1)Align with the target material level and ensure perpendicular incidence onto the material

     surface.
(2)Avoid false echoes. Refer to the following typical working conditions.

  • Ensure no obstructions (such as step ladders or stairs) are present within the beam coverage area, as shown in Figure 1.
  • The instrument should be installed so that the antenna beam avoids the feed inlet,as shown in Figure 2.


                      Figure 1: Schematic Diagram of                                                                     Figure 2
                      Instrument Instanllation Location



  • Mount the Instrument at least 20 cm(200mm) away from the container wall. Failure to do may result in false reading (See Figure 3).

  • For conical vessels, ensure the beam directly impacts the material surface at the bottom. Otherwise, measurement at the tank bottom maybe inaccurate (See Figure 4).

                                             Figure 3                                                                                  Figure 4
